⚙️ Separation & Flow Control

Liquid-Liquid, Gas-Liquid & Gas Mixture Separators

High-efficiency separators for precise phase separation in continuous flow processes. Available in SS316, PTFE, and custom materials.

Request Quote → View Products

Our Separator Range

Reliable liquid-liquid, gas-liquid and gas mixture separation columns for R&D and production.

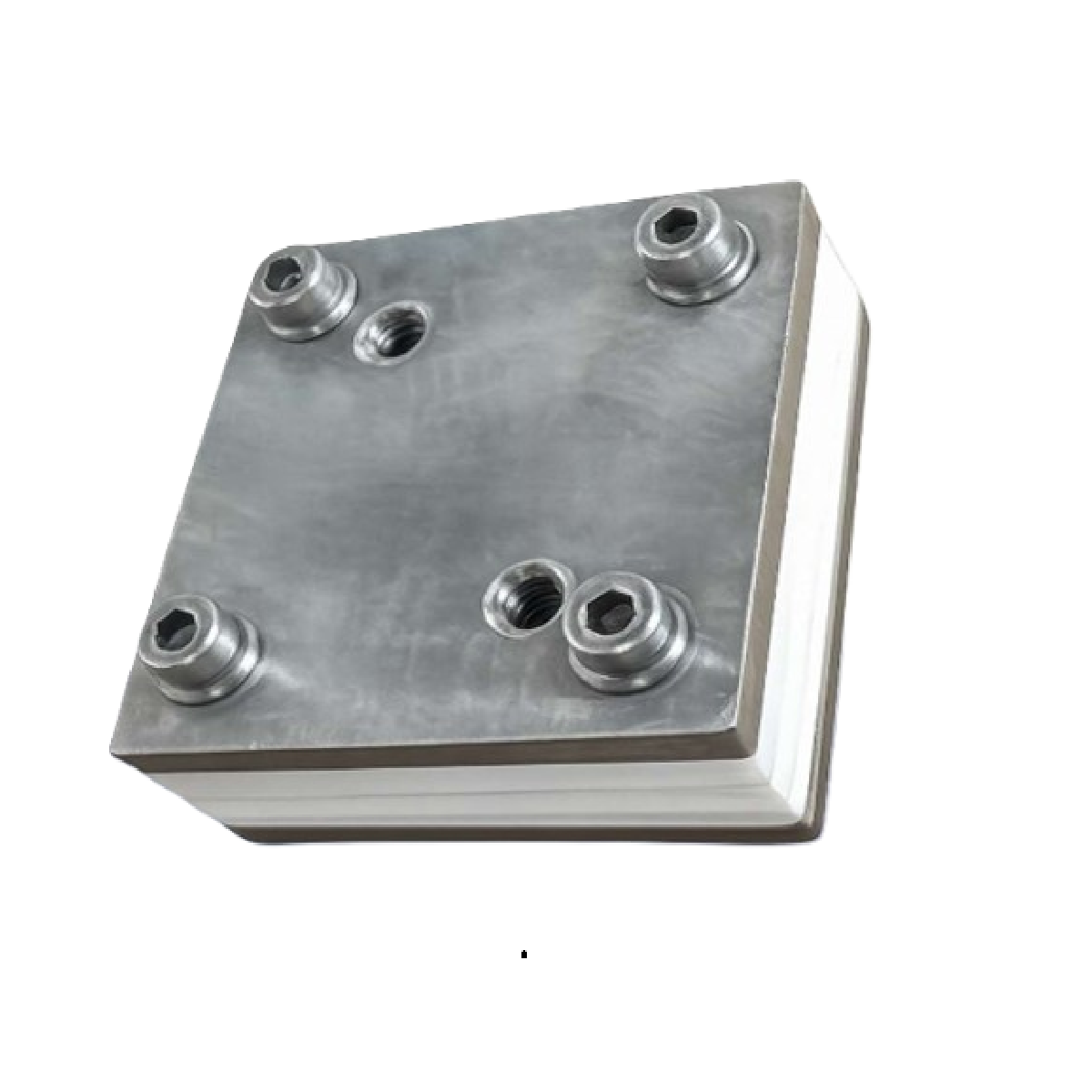

Liquid Liquid Separator 4mL
SCS-LLS-SS-4

Liquid Liquid Separator 4mL

Rs. 24,000/-

Key Specs

  • Outer Body: SS316
  • Volume: 4mL, Dead vol: 700 µL
  • Pressure: up to 2 bar
  • Flow: up to 30 mL/min
  • Membrane: 0.25–0.45 µm PTFE
  • Wetted parts: PTFE

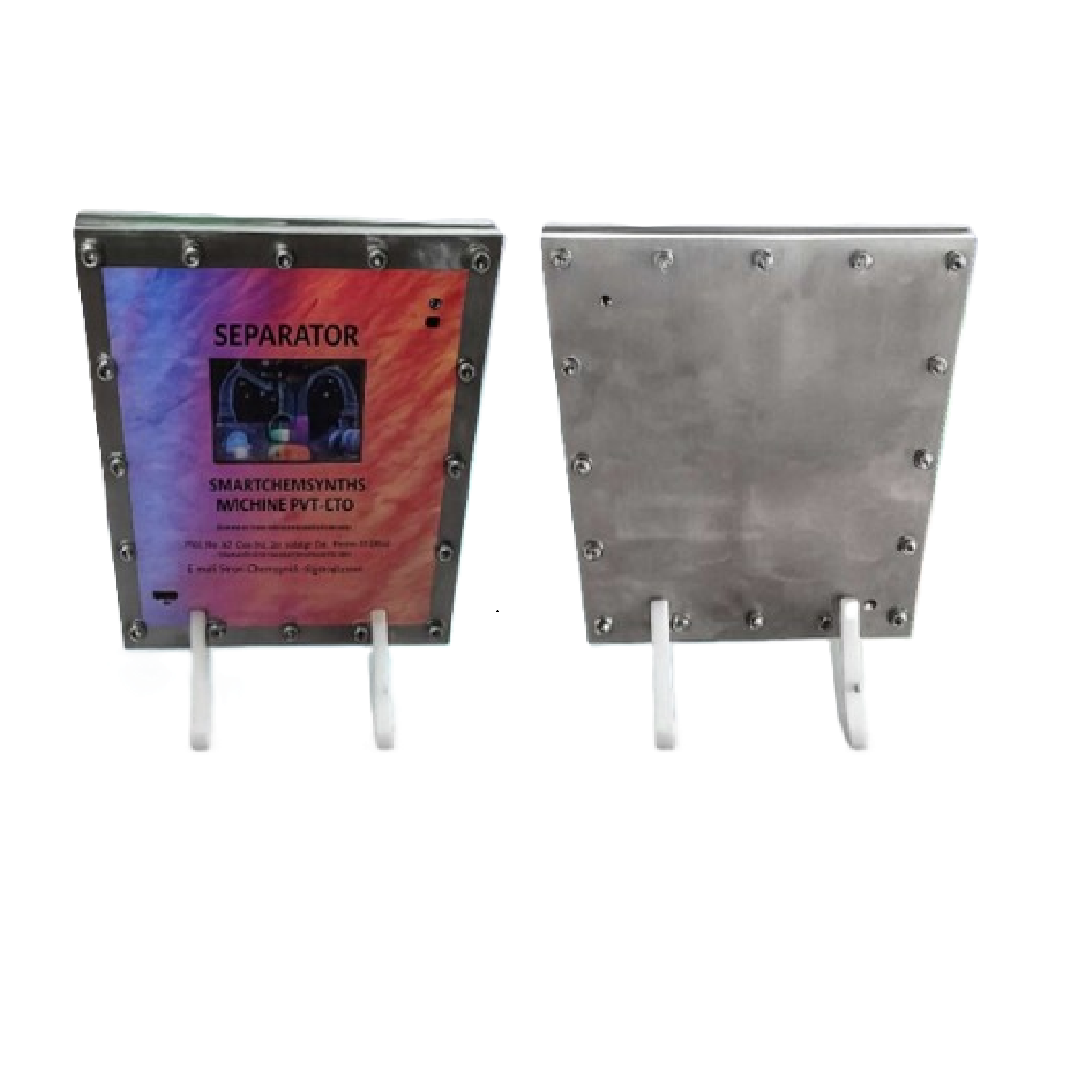

Liquid Liquid Separator PTFE 20mL
SCS-LLS-SS-20

Liquid Liquid Separator PTFE 20mL

Rs. 76,000/-

Key Specs

  • Flow reactor: 22×22 cm²
  • Dead volume: 20 mL
  • Flow: up to 200 mL/min
  • Temp: 25–100°C
  • Membrane: 0.25–0.45 µm PTFE
  • Ports: 1/8″, 1/4″-28 UN
Liquid Liquid Separator PTFE 26mL
SCS-LLS-SS-26

Liquid Liquid Separator PTFE 26mL

Rs. 80,000/-

Key Specs

  • Flow reactor: 22×22 cm²
  • Dead volume: 26 mL
  • Flow: up to 200 mL/min
  • Temp: 25–100°C
  • Membrane: 0.25–0.45 µm PTFE
  • Ports: 1/8″, 1/4″-28 UN

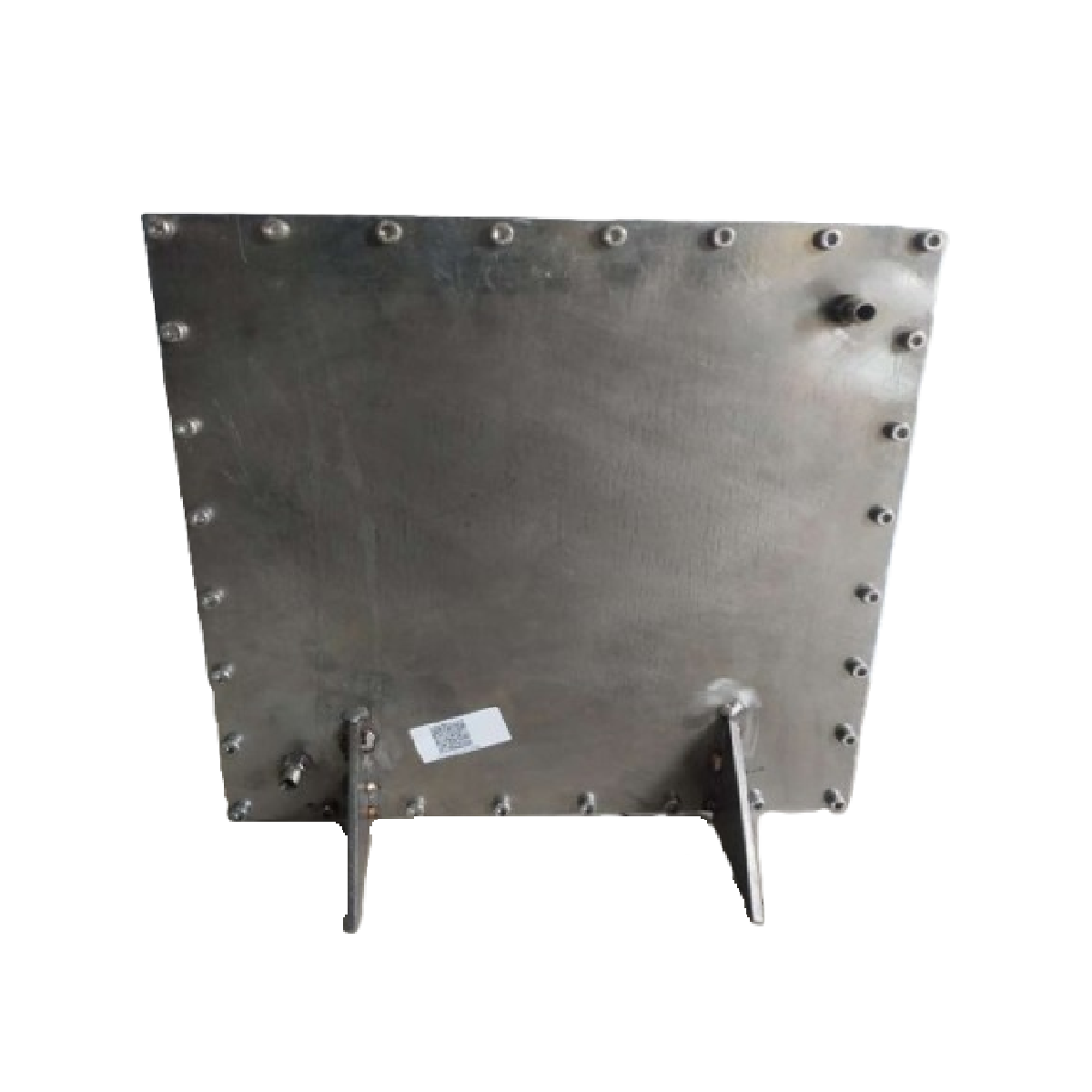

Liquid Liquid Separator 200mL
SCS-LLS-SS-200

Liquid Liquid Separator up to 200mL

Rs. 1,80,000/-

Key Specs

  • Flow reactor: 35×35 cm²
  • Flow: up to 1 L/min
  • Temp: 25–100°C
  • Membrane: 0.25–0.45 µm PTFE
  • Ports: 1/8″, 1/4″-28 UNF
Liquid Liquid Separator 500mL
SCS-LLS-SS-500

Liquid Liquid Separator up to 500mL

Rs. 2,50,000/-

Key Specs

  • Flow reactor: 35×35 cm²
  • Dead volume: 220 mL
  • Flow: up to 500 mL/min
  • Temp: 25–100°C
  • Membrane: 0.25–0.45 µm PTFE
✔ SIZE CUSTOMIZABLE

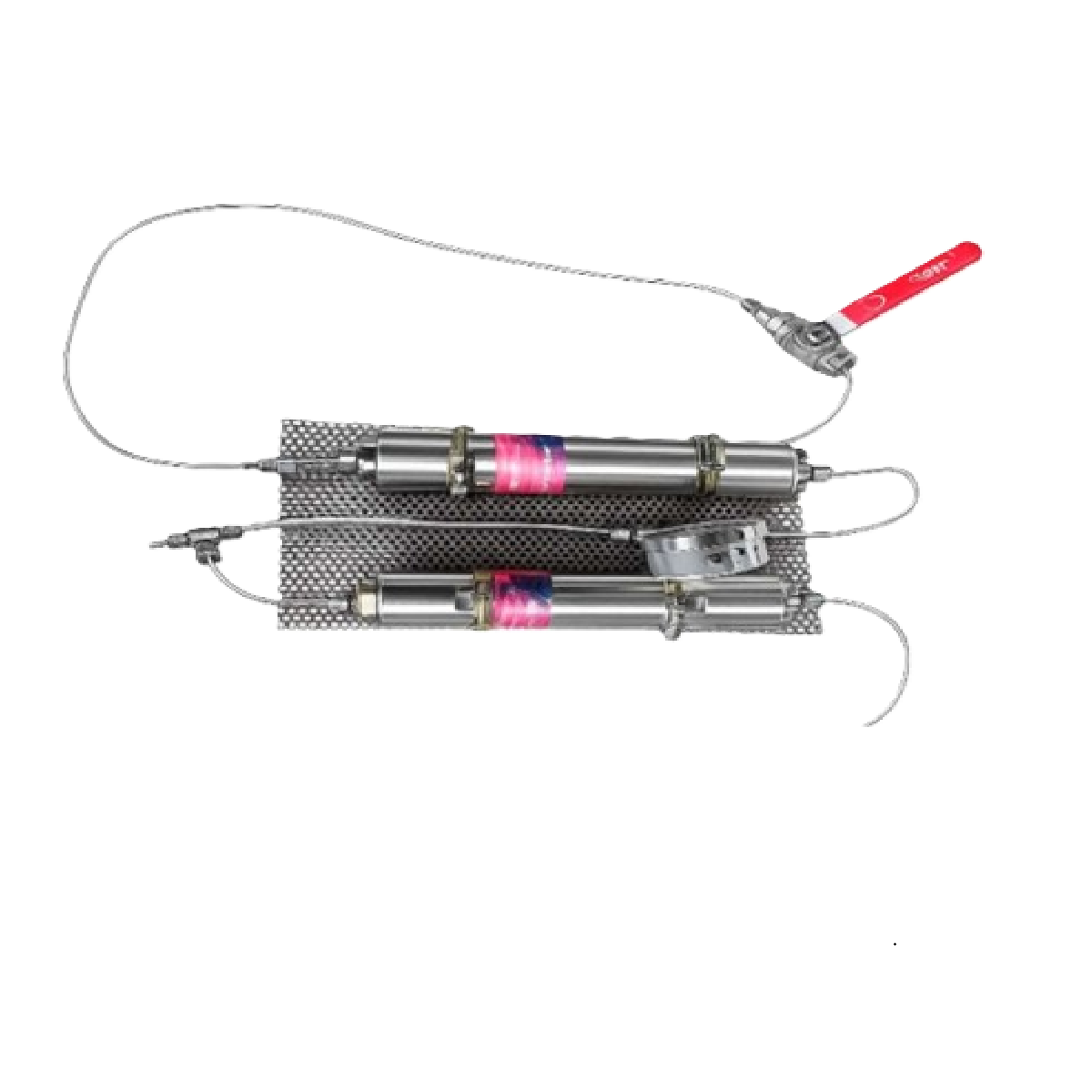

Gas Mixture Separation Column
SCS-GMSC

Gas Mixture Separation Column

Rs. 1,32,000/-

Key Specs

  • MOC: SS316
  • 100 Bar Pressure Gauge
  • NRV 1/4″
  • Customizable size
  • Hastelloy-C276 available

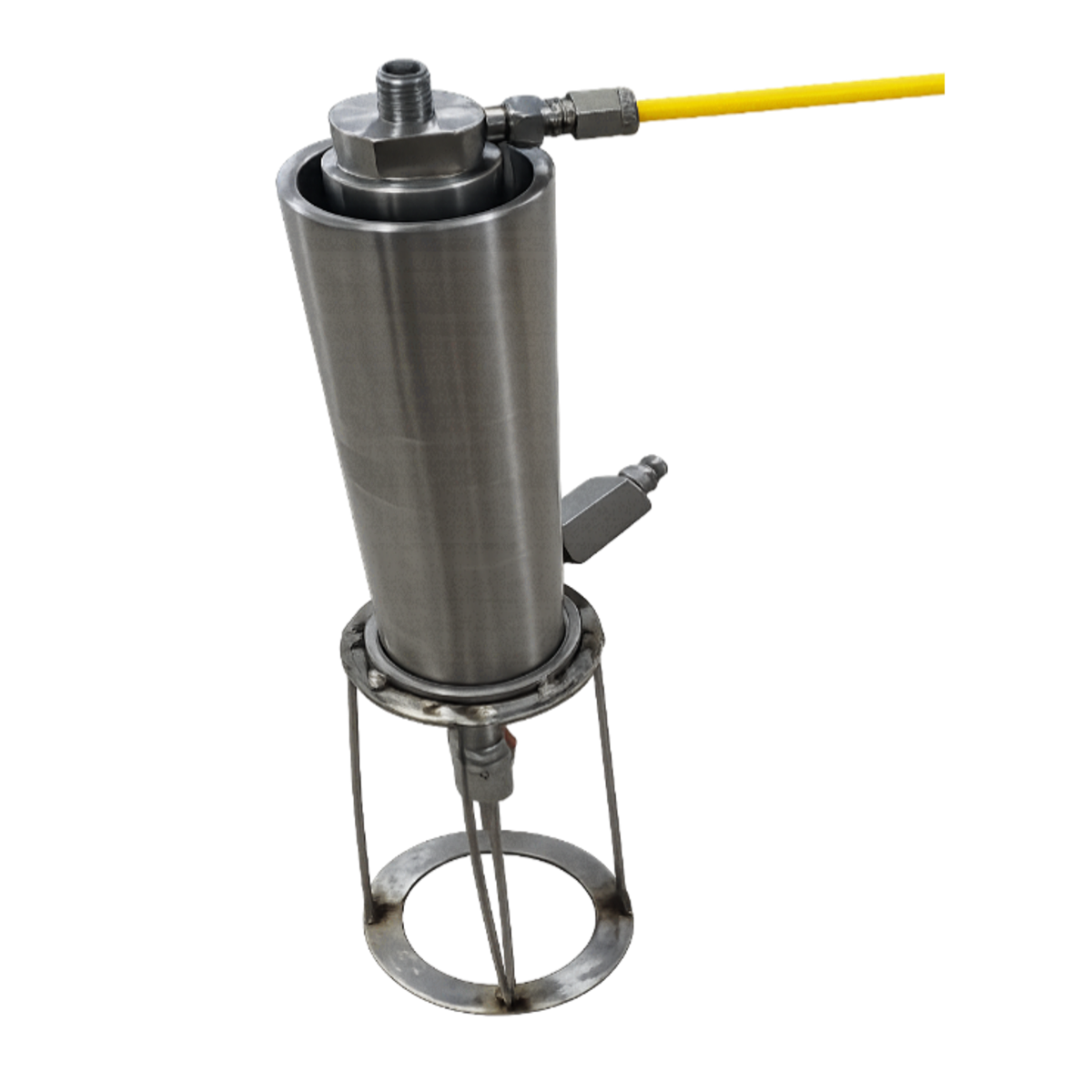

Distillation Unit 1000mL Cold Trap
SCS-SDU-1000

Distillation Unit 1000mL (Cold Trap)

Rs. 42,000/-

Key Specs

  • MOC: SS316
  • Connectors included
  • Gas-liquid separation
  • Cold trap design

Need a Custom Separator Solution?

Our engineering team can help you select the right separator for your flow, pressure and chemical compatibility requirements.

Request a Quote →
