Electrochemical Setups | SmartChemSynth
⚡ Electrochemical Solutions

Electrochemical Setups
for Research & Process

Complete systems including programmable DC power supplies, batch cells, flow reactors, and electrodes — from single-channel to multi-channel configurations.

Request Quote → View Setups

Electrochemical Setup Range

Batch reactors, flow reactors, and heating reactors with OWON power supplies and comprehensive electrode kits.

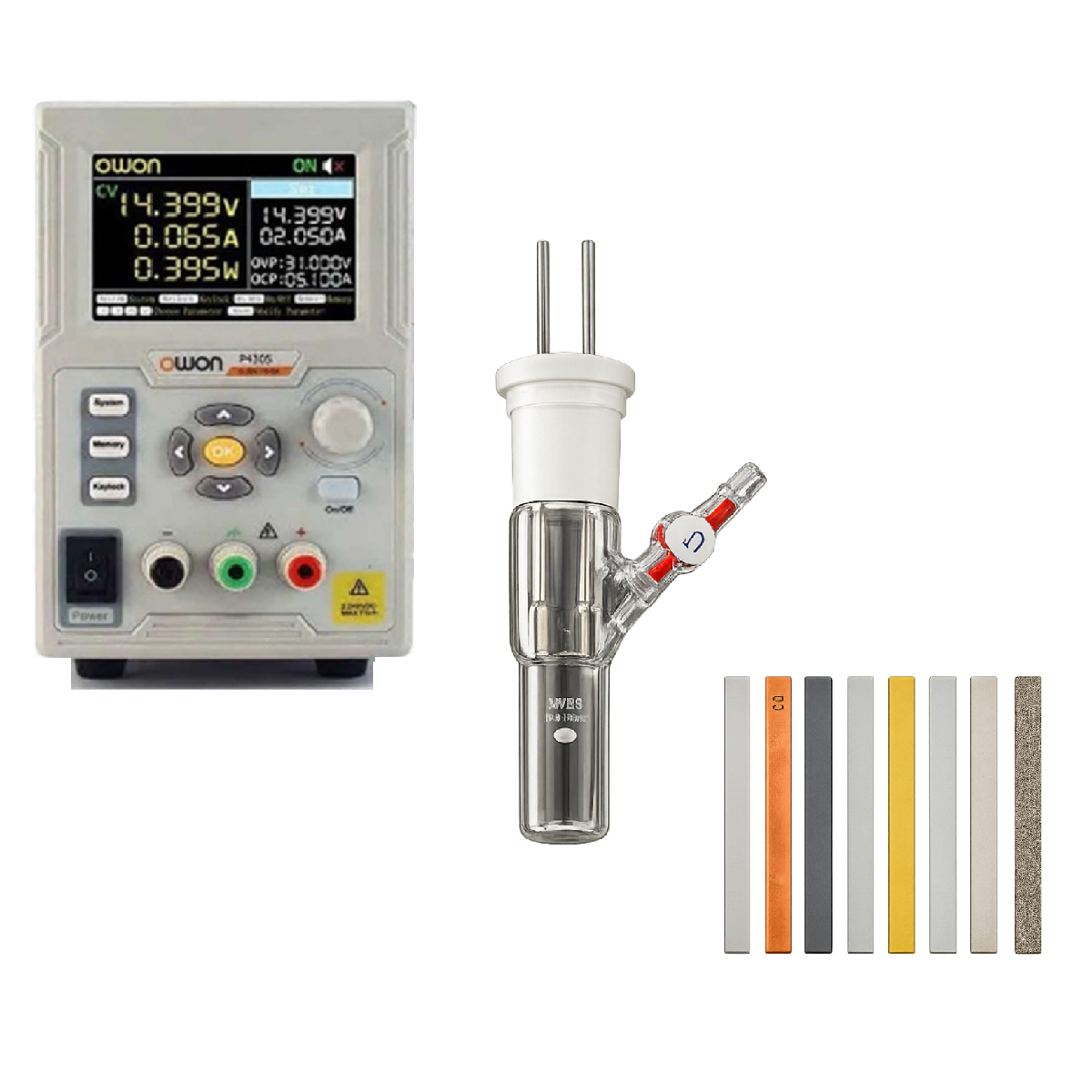

SCS-EBRS-1CH 1CH Batch
SCS-EBRS-1CH

Electrochemical Batch Reactor Setup

Rs. 35,000/-

Specifications

  • 1-Channel Programmable DC Supply
  • 150W, 0-30V / 0-5A
  • 1mV / 1mA resolution

📋 Full details

  • OWON Technology, TFT LCD display
  • Glass cell (10 ml) with PE cap
  • Reusable electrode holder
  • Electrodes: Al, SGr, HGr, Ti, Brass, Pb, Zn, Cu, NiFoam, Mg, Ni, Fe, SS316

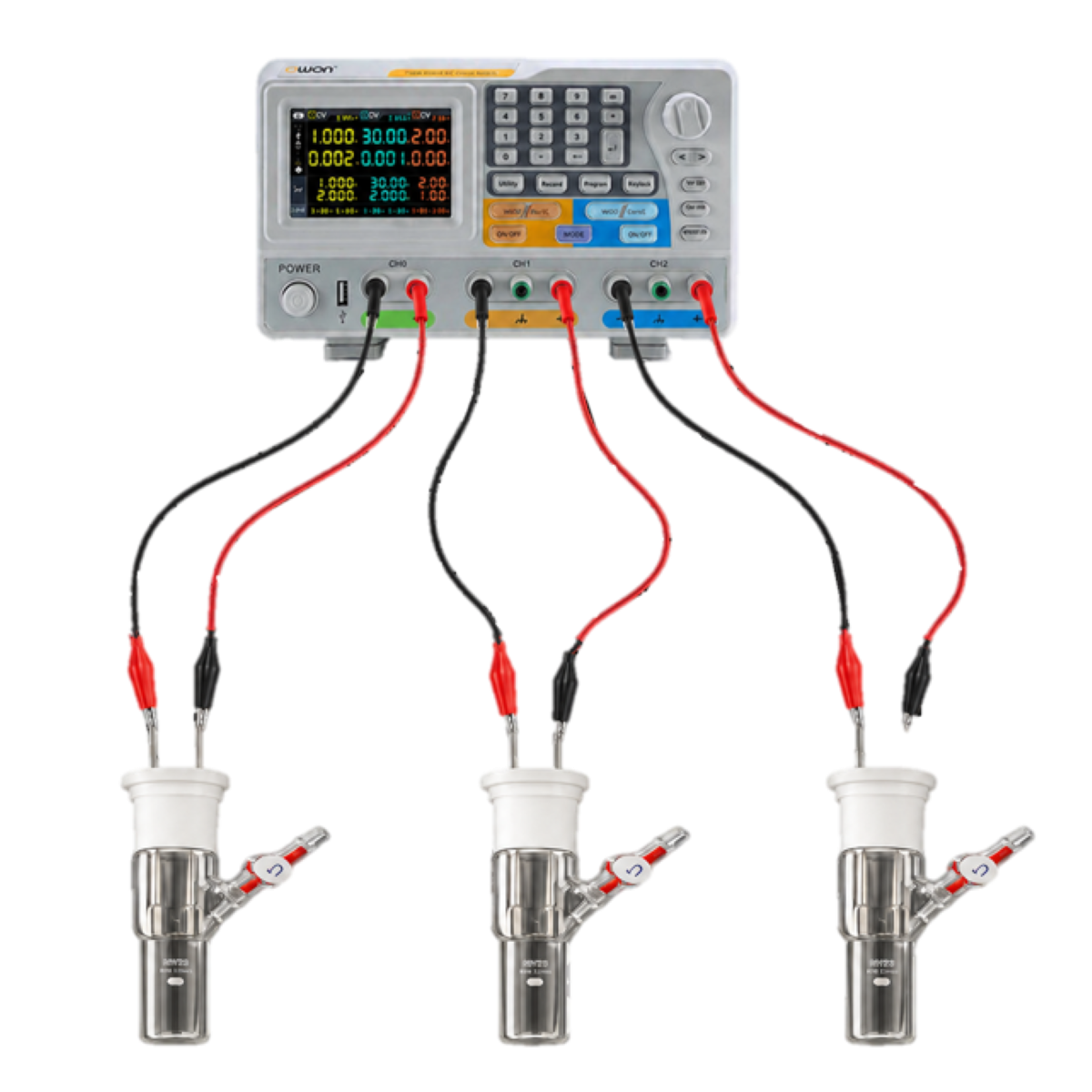

SCS-EBRS-3CH 3CH Batch
SCS-EBRS-3CH

3CH Electrochemical Batch Reactor Setup

Rs. 82,000/-

Specifications

  • 3-Channel Programmable DC Supply
  • 198W, 0-30V/3A (x2), 0-6V/3A
  • 1mV / 1mA resolution

📋 Full details

  • OWON, 4″ color LCD, 480×320
  • 3 glass cells (5 ml) with PE cap
  • 6 reusable electrode holders
  • Electrodes: Al, SGr, HGr, Ti, Brass, Pb, Zn, Cu, NiFoam, Mg, Ni, Fe, SS316
  • Data-logging, USB/RS232/LAN

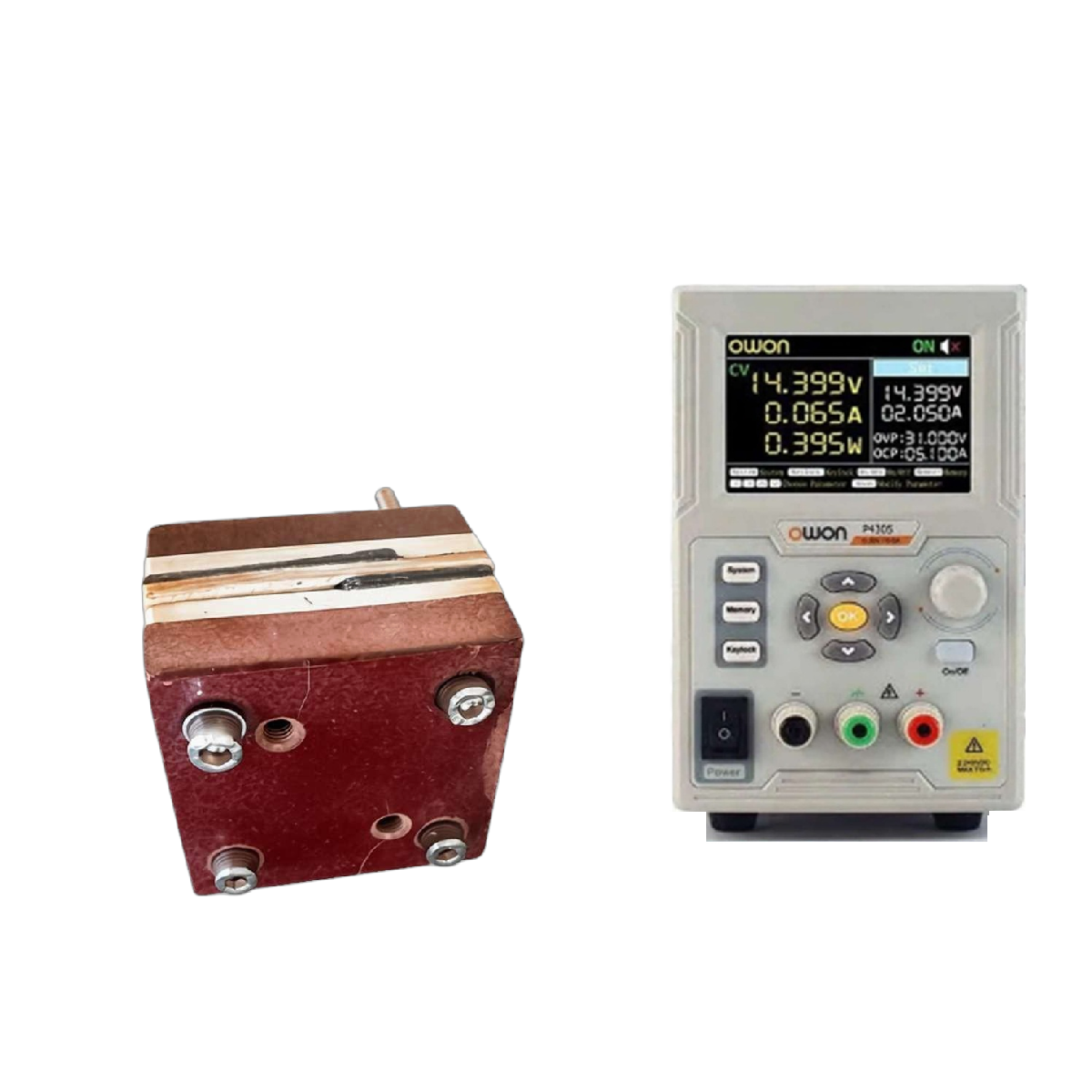

SCS-EFRS-6 6x6 Flow
SCS-EFRS-6

Electro Flow Standard Setup (6 x 6 cm)

Rs. 35,000/-

Specifications

  • Flow reactor 6×6 cm
  • Electrodes: SS & Graphite
  • 150W, 0-30V / 0-5A

📋 Full details

  • OWON programmable DC supply
  • 1mV / 1mA resolution
  • TFT LCD, RS232, SCPI/LabView
  • Alligator clip, electrode holder

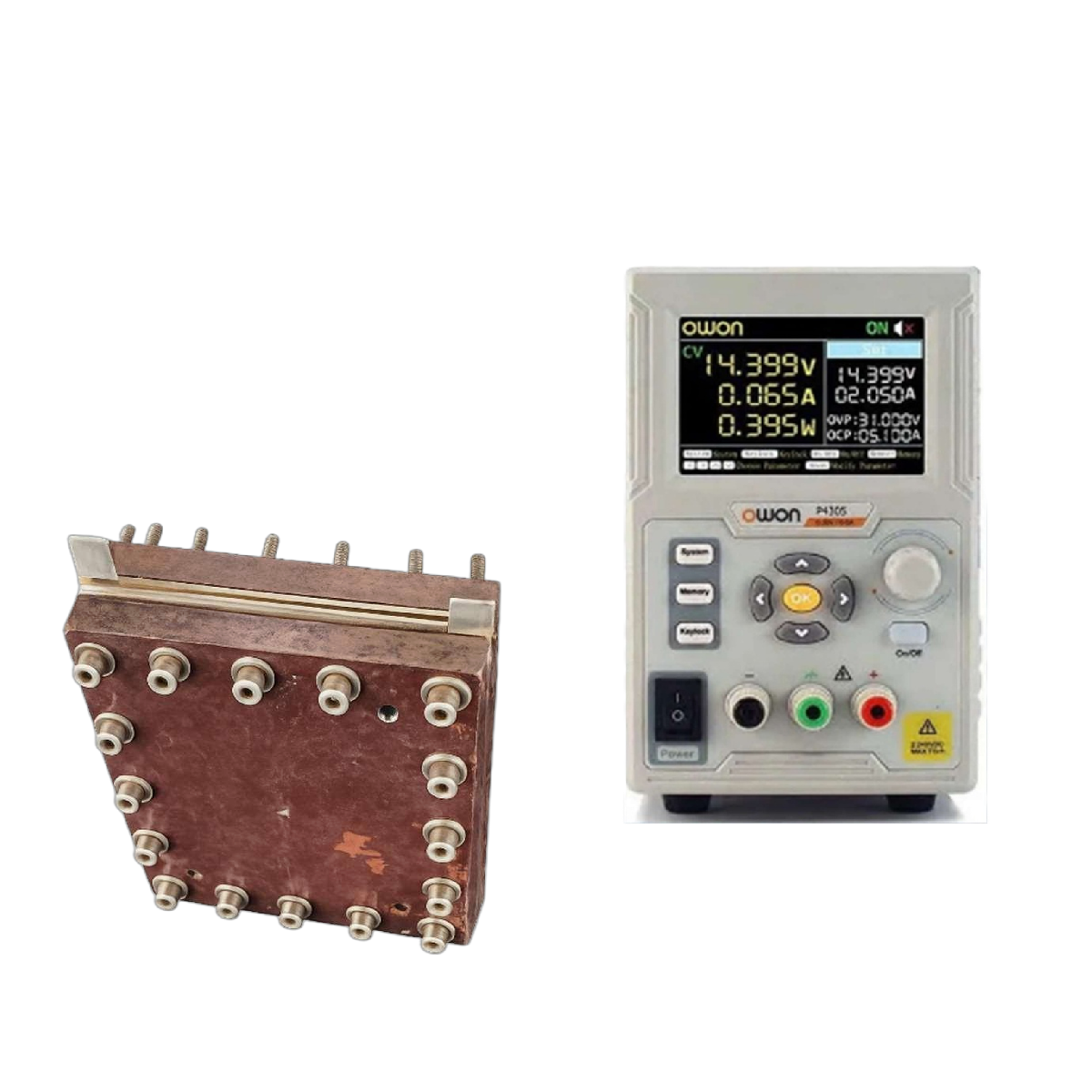

SCS-EFRS-15 15x15 Flow
SCS-EFRS-15

Electro Flow Standard Setup (15 x 15 cm)

Rs. 60,000/-

Specifications

  • Flow reactor 15×15 cm
  • Electrodes: SS & Graphite
  • 150W, 0-30V / 0-5A

📋 Full details

  • OWON programmable DC supply
  • 1mV / 1mA resolution
  • TFT LCD, RS232, SCPI/LabView
  • Alligator clip, electrode holder

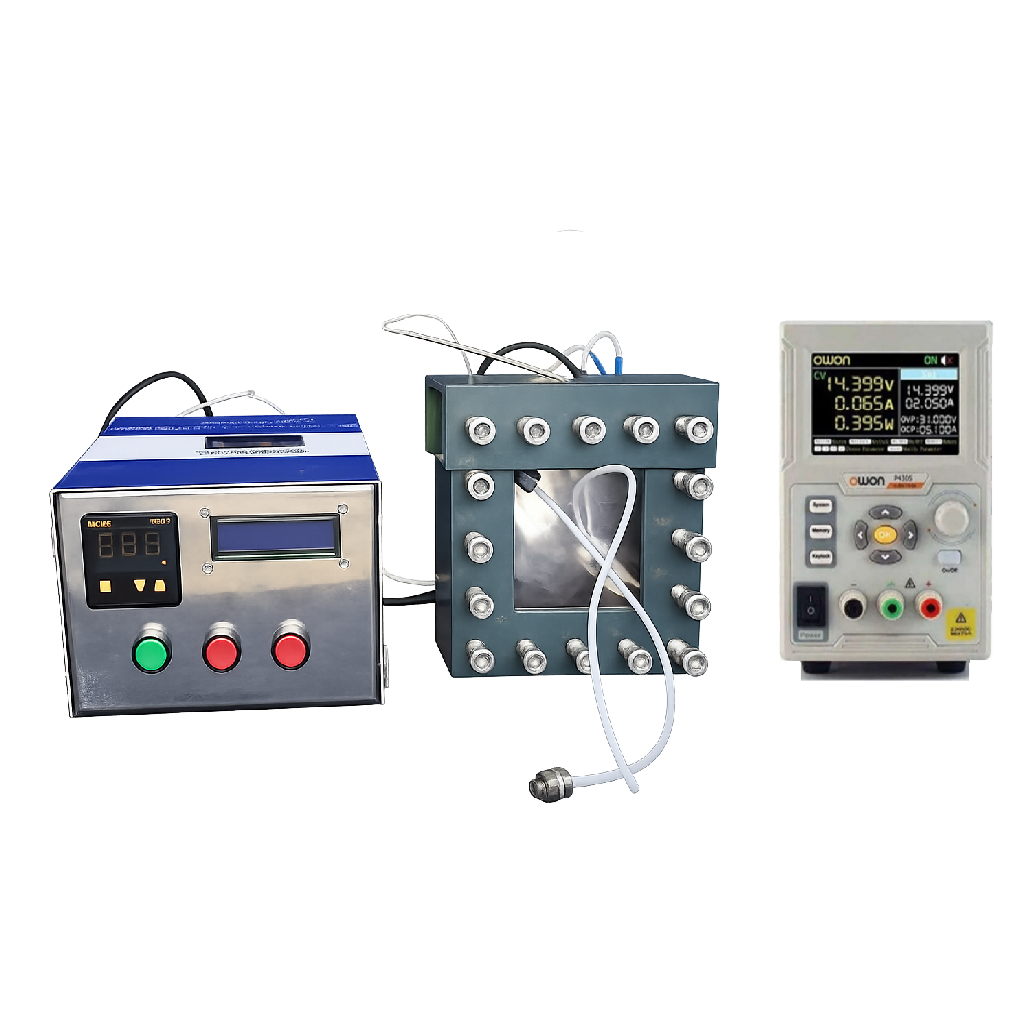

SCS-EFRS-SH Heating Flow
SCS-EFRS-SH

Electro Flow Standard Heating Reactor (15×15 cm)

Rs. 1,10,000/-

Specifications

  • Heated flow reactor 15×15 cm
  • SS316 body, PTFE wetted parts
  • Heating mantle RT–120°C

📋 Full details

  • Internal volume 4 mL
  • 1/8″ connection
  • SS & Soft Graphite electrodes
  • 150W OWON power supply
  • Alligator clip, electrode holder

Custom Electrochemical Systems

Need a specific electrode material, cell volume, or multi-channel configuration? Contact us to discuss your research or process requirements.

Request a Quote →
