AI Optimization Reactors | SmartChemSynth
⚛️ AI-Controlled Flow Chemistry

AI Optimization Reactors
for Advanced Synthesis

High-performance heating, electro-flow, and photo reactors with syringe or HPLC pumps, automated BPR, and AI-ready control.

Request Quote → View Products

AI Optimization Reactor Range

Integrated systems with syringe or HPLC pumps, automated back-pressure regulator, and electrochemical or photo reactors.

AI Heating Reactor with SyringePump 🔍 Click to enlarge
SCS-AI-SP-HR

AI Optimization Heating Reactor with SyringePump

₹ 3,00,000/-

Specifications

  • 1. Single lap syringe pump: MOC SS316, 66 kgcm stepper motor, PLC touch screen, flow 10µL-100 mL/min, pressure 8-25 bar, accuracy 98±2%
  • 2. Automated BPR up to 100 bar: LCD display, PTFE diaphragm, SS316 body, error ±0.5 bar, RT-100°C
  • 3. Electrochemical reactor: SS316 body, 4mL volume, PTFE wetted, heating RT-120°C, SS & graphite electrodes, 30V 5A DC supply
  • 4. 3D printer auto collector with Arduino IDE + accessories (tubes, vials, stand)
  • 5. Connections & cables included
AI Heating Reactor with HPLC Pump 🔍 Click to enlarge
SCS-AI-HPLC-HR

AI Optimization Heating Reactor with HPLC Pump

₹ 3,00,000/-

Specifications

  • 1. Continuous piston HPLC pump: SS316, 66 kgcm motor, flow 100µL-100 mL/min, programmable µC, pressure 30 bar, 6 check valves, Kalrez O-rings, AI control
  • 2. Automated BPR up to 100 bar: LCD display, PTFE diaphragm, SS316 body, error ±0.5 bar, RT-100°C
  • 3. Electrochemical reactor: SS316 body, 4mL volume, PTFE wetted, heating RT-120°C, SS & graphite electrodes, 30V 5A DC supply
  • 4. 3D printer auto collector with Arduino IDE + accessories (tubes, vials, stand)
  • 5. Connections & cables included
AI Electro Flow Reactor with SyringePump 🔍 Click to enlarge
SCS-AI-SP-EFR

AI Optimization Electro Flow Reactor with SyringePump

₹ 3,00,000/-

Specifications

  • 1. Single lap syringe pump: MOC SS316, 66 kgcm stepper motor, PLC touch screen, flow 10µL-100 mL/min, pressure 8-25 bar, accuracy 98±2%
  • 2. Automated BPR up to 100 bar: LCD display, PTFE diaphragm, SS316 body, error ±0.5 bar, RT-100°C
  • 3. Electrochemical reactor: SS316 body, 4mL volume, PTFE wetted, heating RT-120°C, SS & graphite electrodes, 30V 5A DC supply
  • 4. 3D printer auto collector with Arduino IDE + accessories (tubes, vials, stand)
  • 5. Connections & cables included
AI Electro Flow Reactor with HPLC Pump 🔍 Click to enlarge
SCS-AI-HPLC-EFR

AI Optimization Electro Flow Reactor with HPLC Pump

₹ 3,00,000/-

Specifications

  • 1. Continuous piston HPLC pump: SS316, 66 kgcm motor, flow 100µL-100 mL/min, programmable µC, pressure 30 bar, 6 check valves, Kalrez O-rings, AI control
  • 2. Automated BPR up to 100 bar: LCD display, PTFE diaphragm, SS316 body, error ±0.5 bar, RT-100°C
  • 3. Electrochemical reactor: SS316 body, 4mL volume, PTFE wetted, heating RT-120°C, SS & graphite electrodes, 30V 5A DC supply
  • 4. 3D printer auto collector with Arduino IDE + accessories (tubes, vials, stand)
  • 5. Connections & cables included

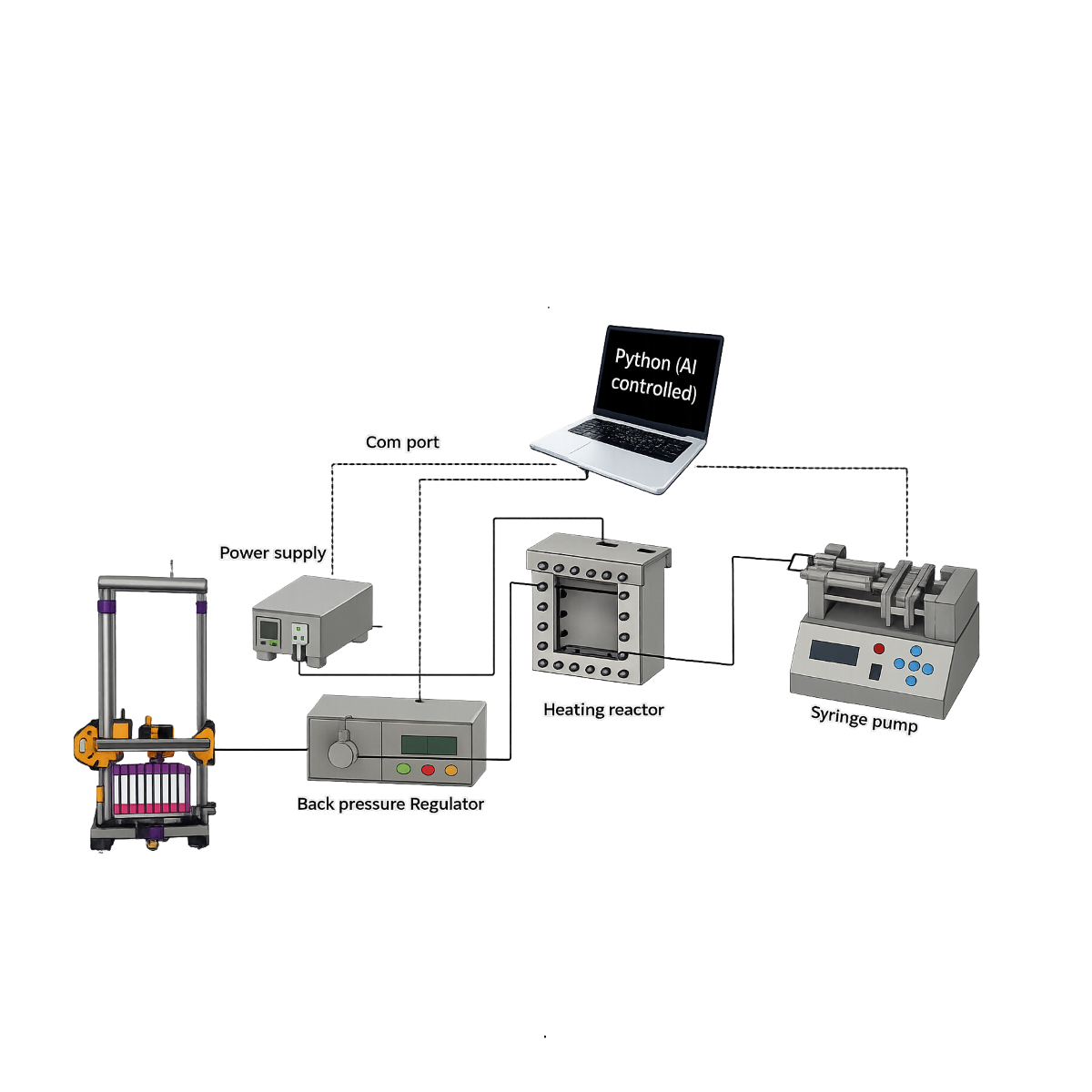

AI Electro Flow Heating Reactor with SyringePump 🔍 Click to enlarge
SCS-AI-SP-EFHR

AI Optimization Electro Flow Heating Reactor with SyringePump

₹ 3,10,000/-

Specifications

  • 1. Single lap syringe pump: MOC SS316, 66 kgcm stepper motor, PLC touch screen, flow 10µL-100 mL/min, pressure 8-25 bar, accuracy 98±2%
  • 2. Automated BPR up to 100 bar: LCD display, PTFE diaphragm, SS316 body, error ±0.5 bar, RT-100°C
  • 3. Photo flow reactor: 400-700 nm, 10-15000 lux, RGB/Cyan/White, SS cage, ID 96mm, H 140mm, 5m light, 90W, 30V 5A DC supply, heating supply
  • 4. 3D printer auto collector with Arduino IDE + accessories (tubes, vials, stand)
  • 5. Connections & cables included
AI Electro Flow Heating Reactor with HPLC Pump 🔍 Click to enlarge
SCS-AI-HPLC-EFHR

AI Optimization Electro Flow Heating Reactor with HPLC Pump

₹ 3,10,000/-

Specifications

  • 1. Continuous piston HPLC pump: SS316, 66 kgcm motor, flow 100µL-100 mL/min, programmable µC, pressure 30 bar, 6 check valves, Kalrez O-rings, AI control
  • 2. Automated BPR up to 100 bar: LCD display, PTFE diaphragm, SS316 body, error ±0.5 bar, RT-100°C
  • 3. Photo flow reactor: 400-700 nm, 10-15000 lux, RGB/Cyan/White, SS cage, ID 96mm, H 140mm, 5m light, 90W, 30V 5A DC supply, heating supply
  • 4. 3D printer auto collector with Arduino IDE + accessories (tubes, vials, stand)
  • 5. Connections & cables included
AI Photo Reactor with SyringePump 🔍 Click to enlarge
SCS-AI-SP-PR

AI Optimization Photo Reactor with SyringePump

On Request

Specifications

  • 1. Single lap syringe pump: MOC SS316, 66 kgcm stepper motor, PLC touch screen, flow 10µL-100 mL/min, pressure 8-25 bar, accuracy 98±2%
  • 2. Automated BPR up to 100 bar: LCD display, PTFE diaphragm, SS316 body, error ±0.5 bar, RT-100°C
  • 3. Photo flow reactor: 400-700 nm, 10-15000 lux, RGB/Cyan/White, SS cage, ID 96mm, H 140mm, 5m light, 90W, 30V 5A DC supply
  • 4. 3D printer auto collector with Arduino IDE + accessories (tubes, vials, stand)
  • 5. Connections & cables included
AI Photo Reactor with HPLC Pump 🔍 Click to enlarge
SCS-AI-HPLC-PR

AI Optimization Photo Reactor with HPLC Pump

On Request

Specifications

  • 1. Continuous piston HPLC pump: SS316, 66 kgcm motor, flow 100µL-100 mL/min, programmable µC, pressure 30 bar, 6 check valves, Kalrez O-rings, AI control
  • 2. Automated BPR up to 100 bar: LCD display, PTFE diaphragm, SS316 body, error ±0.5 bar, RT-100°C
  • 3. Photo flow reactor: 400-700 nm, 10-15000 lux, RGB/Cyan/White, SS cage, ID 96mm, H 140mm, 5m light, 90W, 30V 5A DC supply
  • 4. 3D printer auto collector with Arduino IDE + accessories (tubes, vials, stand)
  • 5. Connections & cables included
All-in-One AI Optimization Reactor 🔍 Click to enlarge
SCS-AI-AIO

All-in-One AI Optimization Reactor

On Request

Specifications

  • 1. Single lap syringe pump: MOC SS316, 66 kgcm stepper motor, PLC touch screen, flow 10µL-100 mL/min, pressure 8-25 bar, accuracy 98±2%
  • 2. Automated BPR up to 100 bar: LCD display, PTFE diaphragm, SS316 body, error ±0.5 bar, RT-100°C
  • 3. Electrochemical reactor: SS316 body, 4mL, PTFE wetted, heating RT-120°C, SS & graphite electrodes, 30V 5A DC
  • 4. Photo flow reactor: 400-700 nm, 10-15000 lux, RGB/Cyan/White, SS cage, ID 96mm, H 140mm, 5m light, 90W, 30V 5A DC
  • 5. 3D printer auto collector with Arduino IDE + accessories (tubes, vials, stand)
  • 6. Connections & cables included

Need a Custom AI Reactor Solution?

Our engineering team can configure the perfect AI-optimized flow reactor for your heating, electro, or photo chemistry needs.

Request a Quote →
