Catalyst Cartridge – Smart Chem Synths

SS316 Catalyst Cartridges

Robust SS316 cartridges for high-pressure, high-temperature catalysis.

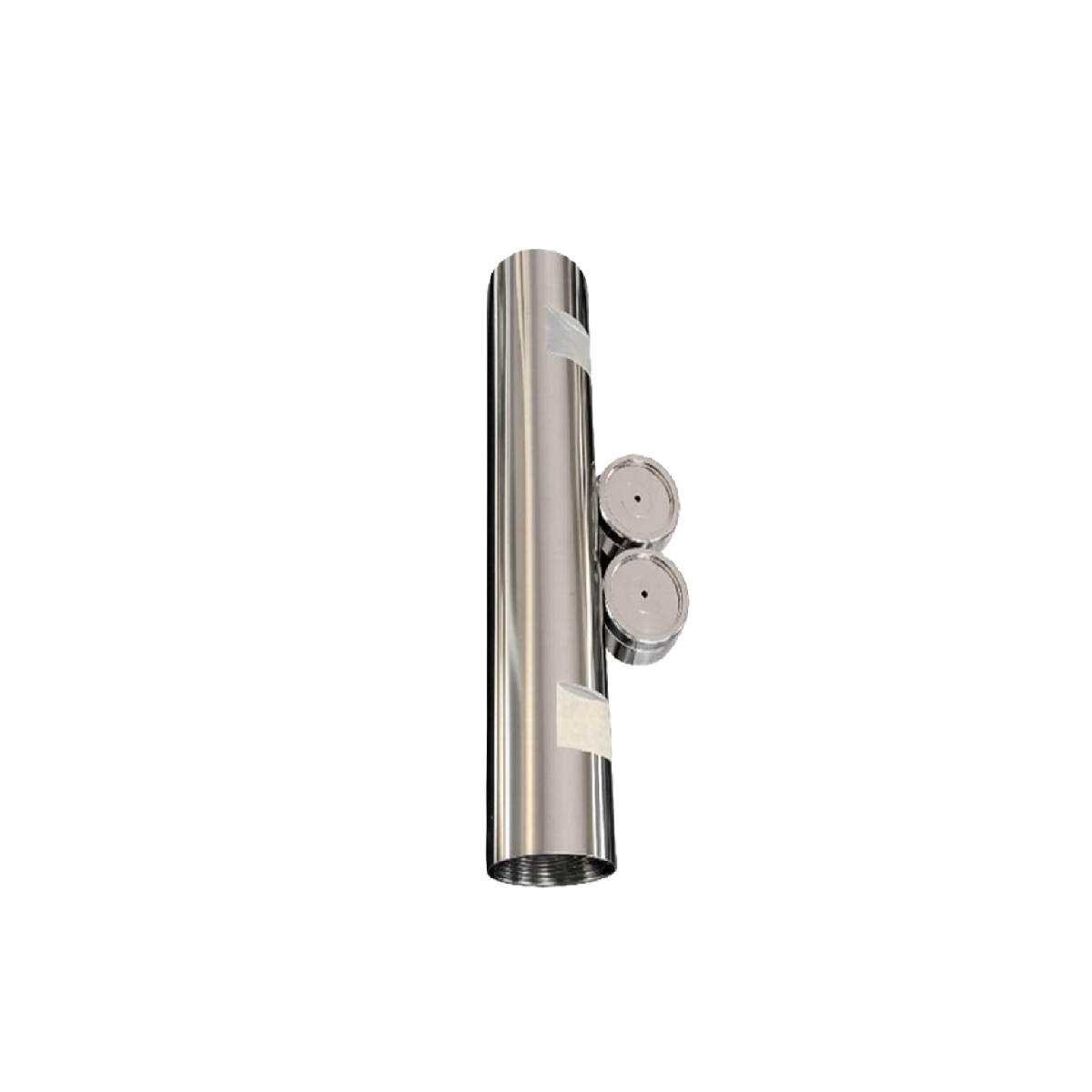

SCS-CC-SS-1

SS Catalyst Cartridge 1mL

Rs. 17,600/-

Specifications

M.O.C: SS-316
Total Reactor Volume: 1 ml
Design: ID 10 mm (coiled tube)
Height: 116 mm
Pressure: 100 bar
Temp: RT to 500°C
Nozzles: 20 mm OD

SCS-CC-SS-2

SS Catalyst Cartridge 2mL

Rs. 17,600/-

Specifications

M.O.C: SS-316
Total Reactor Volume: 2 ml
Design: ID 10 mm (coiled tube)
Height: 116 mm
Pressure: 100 bar
Temp: RT to 500°C
Nozzles: 20 mm OD

SCS-CC-SS-7

SS Catalyst Cartridge 7mL

Rs. 22,000/-

Specifications

M.O.C: SS-316
Total Reactor Volume: 7 ml
Design: ID 10 mm (coiled tube)
Height: 116 mm
Pressure: 100 bar
Temp: RT to 500°C
Nozzles: 20 mm OD

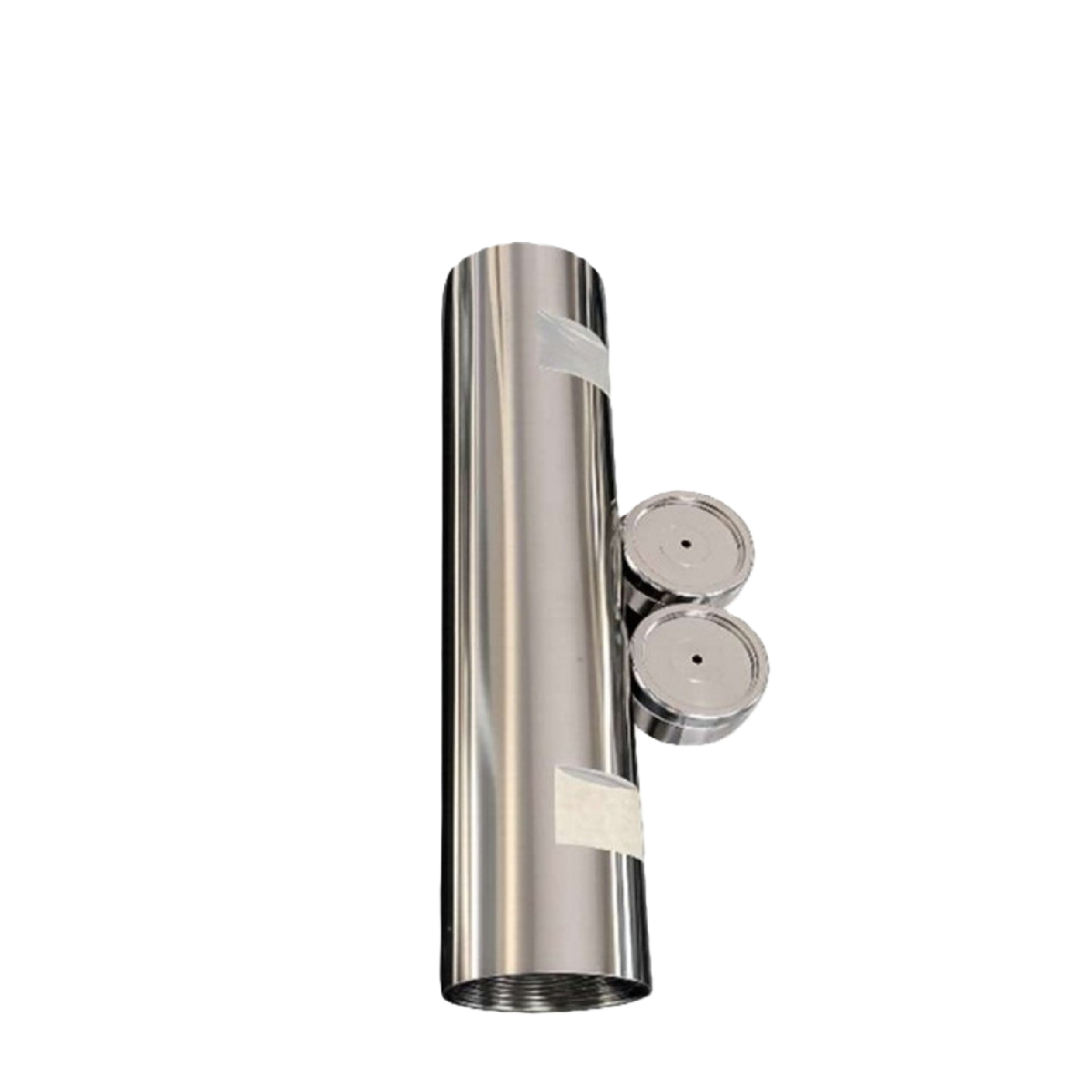

SCS-CC-SS-50

SS Catalyst Cartridge 50mL

Rs. 27,500/-

Specifications

M.O.C: SS-316
Total Reactor Volume: 50 ml
Design: ID 22 mm (coiled tube)
Height: 135 mm
Pressure: 100 bar
Temp: RT to 500°C
Nozzles: 20 mm OD

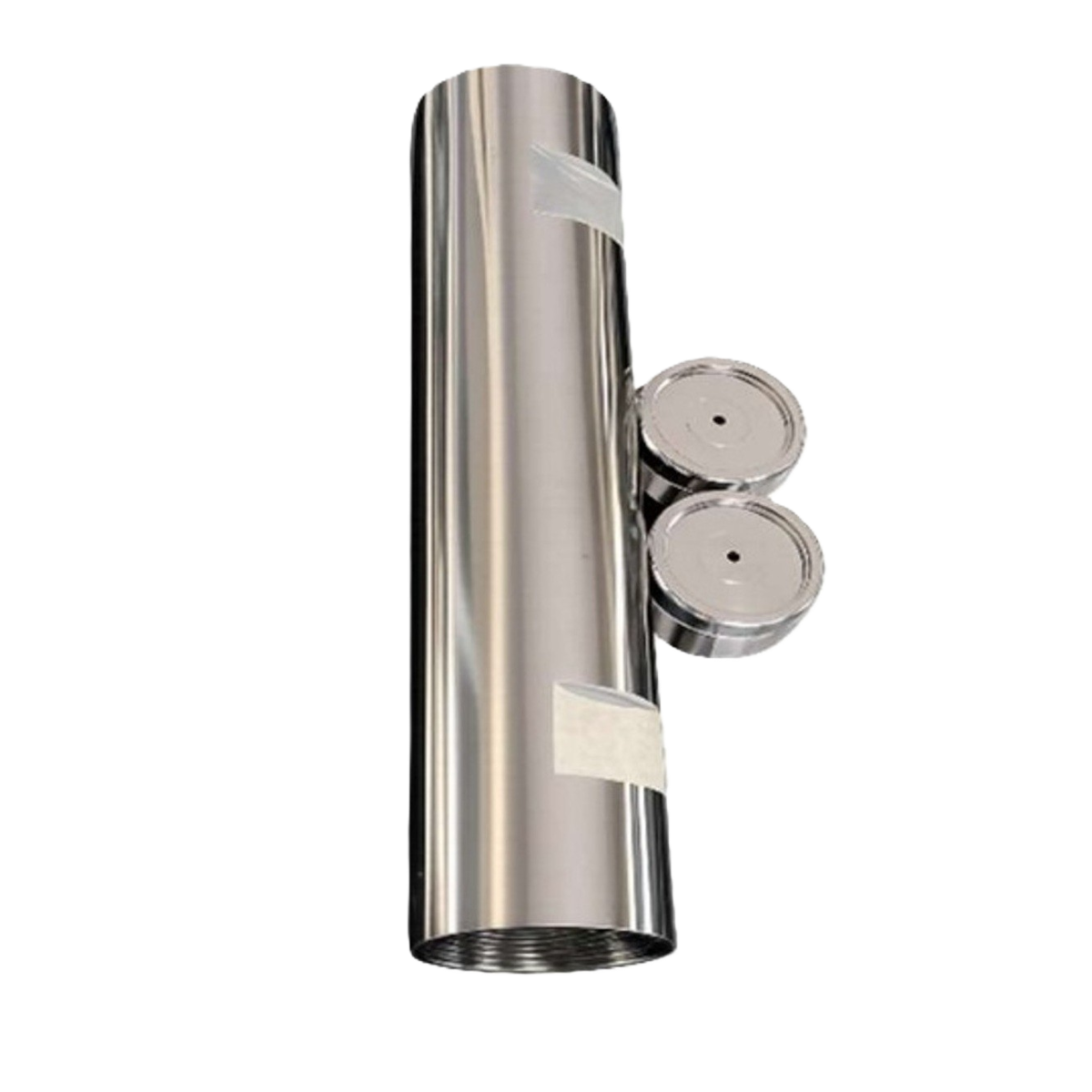

SCS-CC-SS-100

SS Catalyst Cartridge 100mL

Rs. 30,000/-

Specifications

M.O.C: SS-316
Total Reactor Volume: 100 ml
Design: ID 22 mm (coiled tube)
Height: 295 mm
Pressure: 100 bar
Temp: RT to 500°C
Nozzles: 20 mm OD

SCS-CC-HC-SS-100

SS Cartridge with Heating & Cooling Jacket 100mL

Rs. 60,500/-

Specifications

M.O.C: SS-316
Total Reactor Volume: 100 ml
Design: ID 22 mm (coiled tube)
Height: 295 mm
Nozzles & Fittings: 25 mm OD

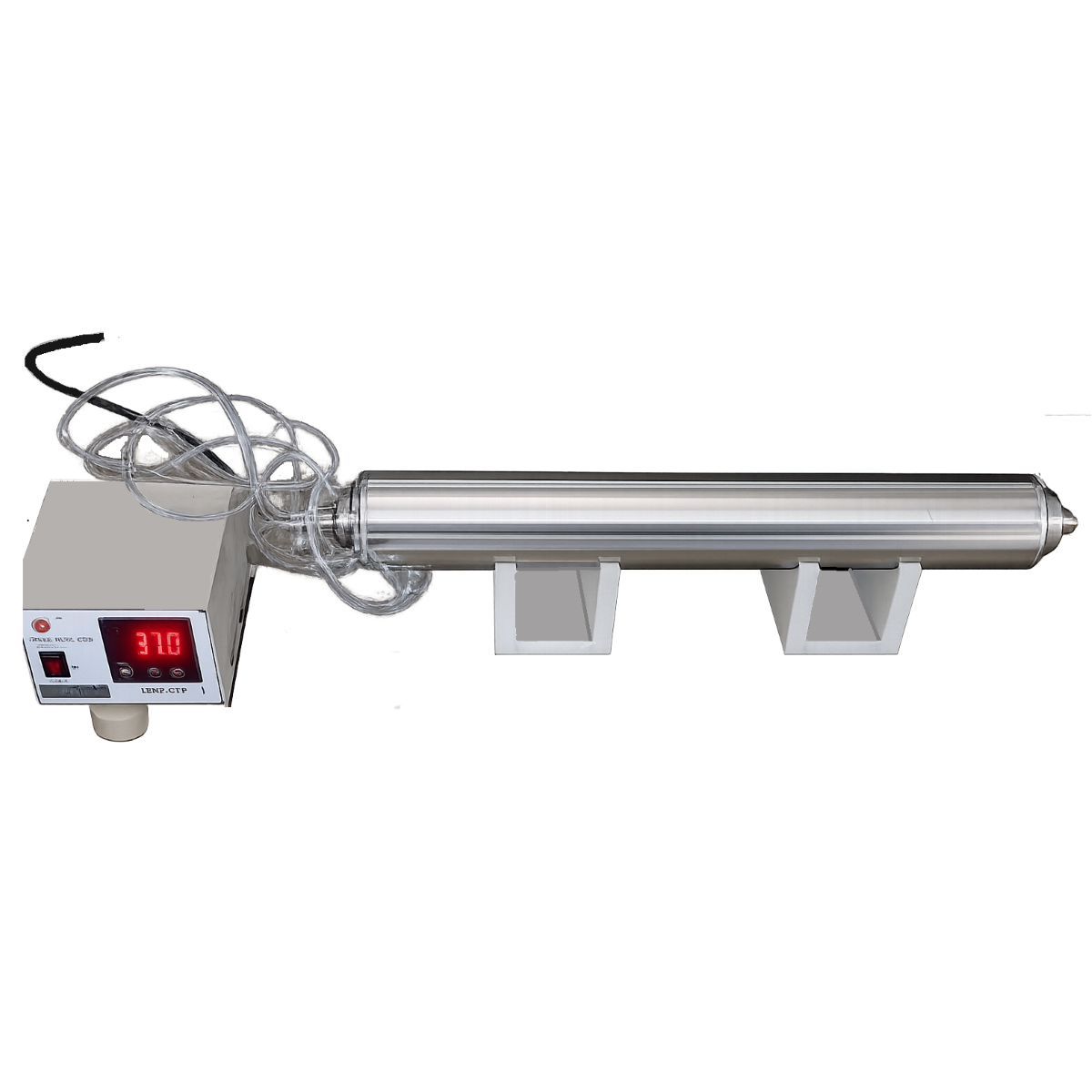

SCS-CC-HC-SS-250

SS Cartridge with Heating & Cooling Jacket 250mL

Rs. 80,500/-

Specifications

M.O.C: SS-316
Total Reactor Volume: 250 ml

SCS-CC-HC-SS-1000

SS Cartridge with Heating & Cooling Jacket 1000mL

Rs. 1,10,500/-

Specifications

M.O.C: SS-316
Total Reactor Volume: 1000 ml

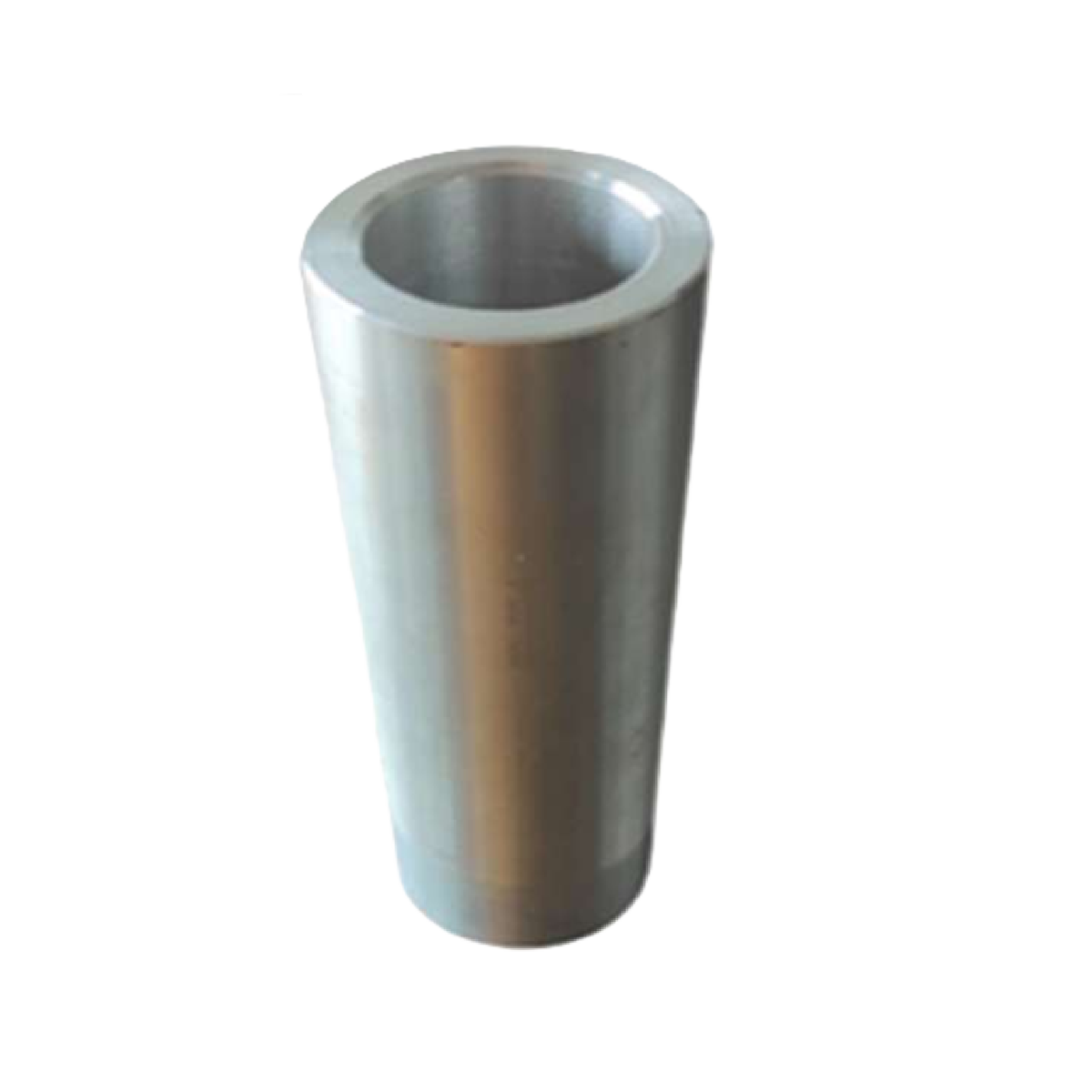

SCS-ACB

Aluminium Block for Cartridge

Rs. 4,400/-

Specifications

M.O.C: Aluminium
Total Reactor Volume: 50 ml
Design: ID 26 mm (coiled tube)
Height: 135 mm
Max Pressure: 100 bar
Temp: RT to 500°C
Nozzles: 50 mm OD

SCS-SS-F

SS316 Filter 0.2 Micron

21mm Dia: Rs. 2,200/-
10mm Dia: Rs. 1,650/-

Specifications

Type: 0.2 Micron
21mm Dia / 10mm Dia
Customizable Size

✔ Custom sizes available

Hastelloy C276 Catalyst Cartridges

Premium corrosion-resistant HC276 cartridges for aggressive chemistries.

SCS-CC-HC-1

HC276 Catalyst Cartridge 1mL

On Request

Specifications

M.O.C: HC276
Total Reactor Volume: 2 ml
Design: ID 10 mm (coiled tube)
Height: 116 mm
Pressure: 100 bar
Temp: RT to 500°C
Nozzles: 20 mm OD

SCS-CC-HC-2

HC276 Catalyst Cartridge 2mL

On Request

Specifications

M.O.C: HC276
Total Reactor Volume: 2 ml
Design: ID 10 mm (coiled tube)
Height: 116 mm
Pressure: 100 bar
Temp: RT to 500°C
Nozzles: 20 mm OD

SCS-CC-HC-7

HC276 Catalyst Cartridge 7mL

On Request

Specifications

M.O.C: HC276
Total Reactor Volume: 7 ml
Design: ID 10 mm (coiled tube)
Height: 116 mm
Pressure: 100 bar
Temp: RT to 500°C
Nozzles: 20 mm OD

SCS-CC-HC-50

HC276 Catalyst Cartridge 50mL

On Request

Specifications

M.O.C: HC276
Total Reactor Volume: 50 ml
Design: ID 22 mm (coiled tube)
Height: 135 mm
Pressure: 100 bar
Temp: RT to 500°C
Nozzles: 20 mm OD

SCS-CC-HC-100

HC276 Catalyst Cartridge 100mL

On Request

Specifications

M.O.C: HC276
Total Reactor Volume: 100 ml
Design: ID 22 mm (coiled tube)
Height: 295 mm
Pressure: 100 bar
Temp: RT to 500°C
Nozzles: 20 mm OD

SCS-CC-HC-HC-100

HC276 Cartridge with Jacket 100mL

On Request

Specifications

M.O.C: HC276
Total Reactor Volume: 100 ml
Design: ID 22 mm (coiled tube)
Height: 295 mm
Nozzles: 25 mm OD

SCS-CC-HC-HC-250

HC276 Cartridge with Jacket 250mL

On Request

Specifications

M.O.C: HC276
Total Reactor Volume: 250 ml

SCS-CC-HC-HC-1000

HC276 Cartridge with Jacket 1000mL

On Request

Specifications

M.O.C: HC276
Total Reactor Volume: 1000 ml

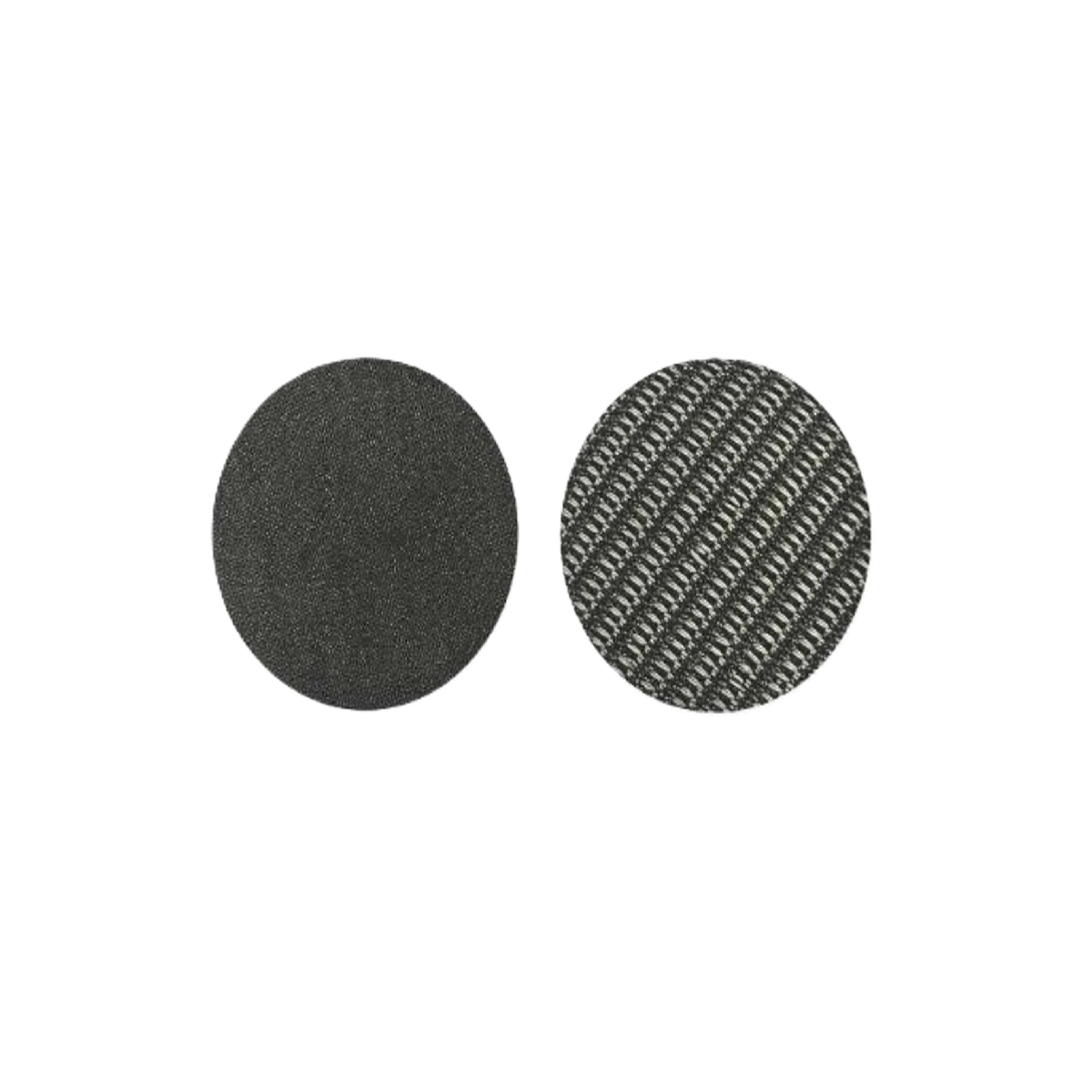

SCS-HC-F

HC276 Filter 0.2 Micron

On Request

Specifications

M.O.C: HC276
Type: 0.2 Micron
Customizable Size

✔ Custom sizes available
