⚙️ Precision Gas Flow Control

Mass Flow Controllers
for Critical Gas Applications

High-accuracy MFCs from AALBORG and BRONKHORST for precise gas flow measurement and control in R&D and production.

Request Quote → View Products

Our Mass Flow Controller Range

Reliable, high-performance MFCs for precise gas flow measurement and control.

Image unavailable

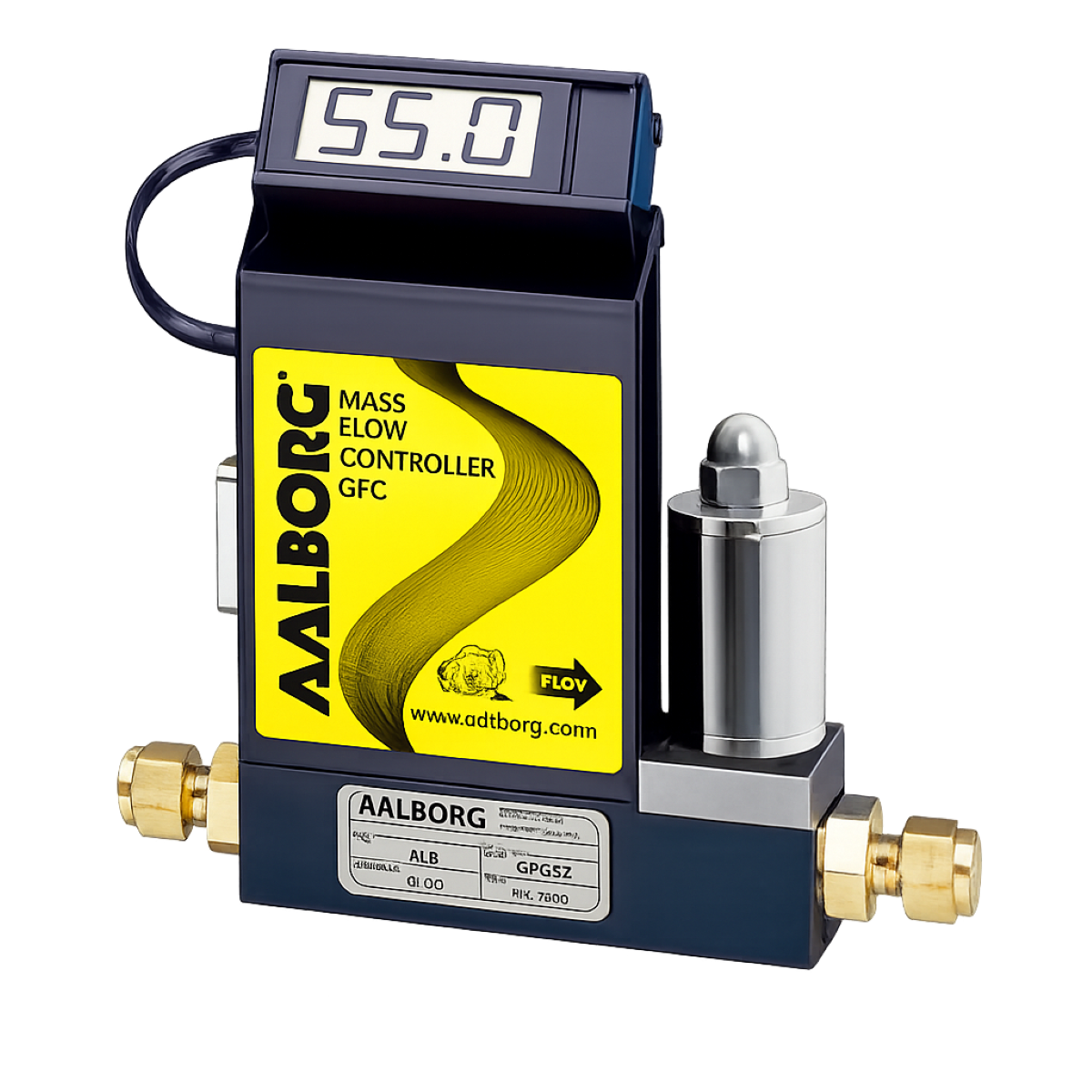

Mass Flow Controller AALBORG
SCS-MFC-A

Mass Flow Controller — AALBORG

On Request

Key Specifications

  • Model: GFC 17
  • Flow rate: 0–500 ml/min
  • Repeatability: ±0.5% of full scale
  • Response time: 300 ms time constant
  • Max. gas pressure: 1000 psig (70 bars)
  • Output: 0–5V DC or 4–20 mA
  • Connections: 1/4″ compression
  • Materials: Stainless Steel
✔ Leak integrity: 1×10⁻⁹ smL/sec He
Image unavailable

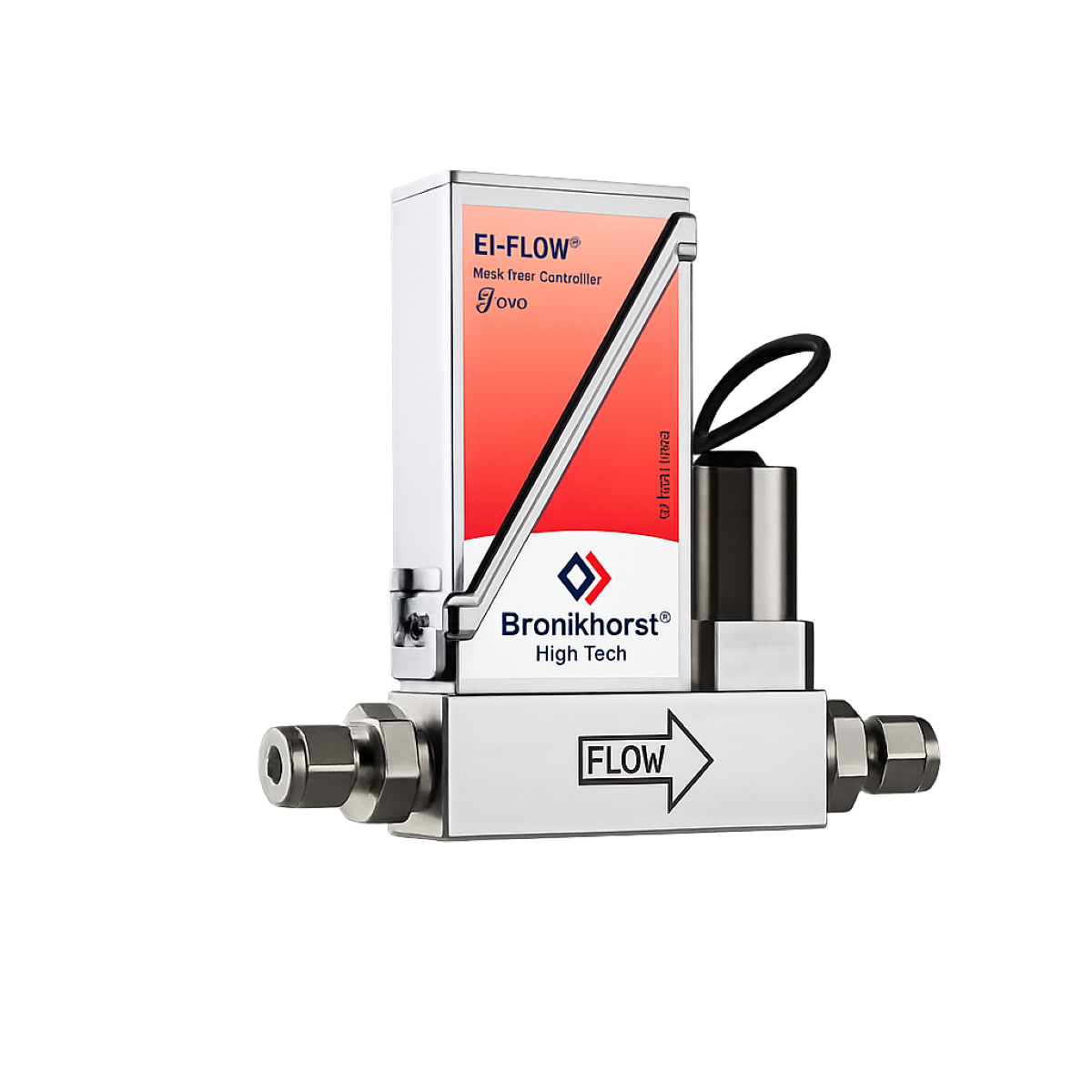

Mass Flow Controller BRONKHORST
SCS-MFC-B

Mass Flow Controller — BRONKHORST

Rs. 3,00,000/-

Key Specifications

  • Model: F-221M-AGD-11-W
  • Series: EL-FLOW High
  • Material: SS 316L
  • Flow range: 10–500 ml/min (H₂)
  • Accuracy: ±0.5% Rd + ±0.1% FS
  • Inlet pressure: 200 bar (g)
  • Valve: Normally Closed
  • Seals: Viton, Plunger: FKM
  • Output: 4–20 mA / RS-232
✔ Includes Power Supply cum Flow Indicator (PSFICT)

Need a Custom MFC Solution?

Our engineering team can help you select the right mass flow controller for your gas, flow range, and pressure requirements.

Request a Quote →
