🔥 High Temperature & Pressure

Multipurpose High Temp &
Pressure Reactor

Single & double channel systems with furnace, catalyst cartridges, blocks, tubular reactors and full accessories. Up to 100 bar and 700°C.

Request Quote → View Systems

High Temp & Pressure Reactor Systems

Complete solutions for high‑temperature, high‑pressure catalysis and flow chemistry.

Image unavailable

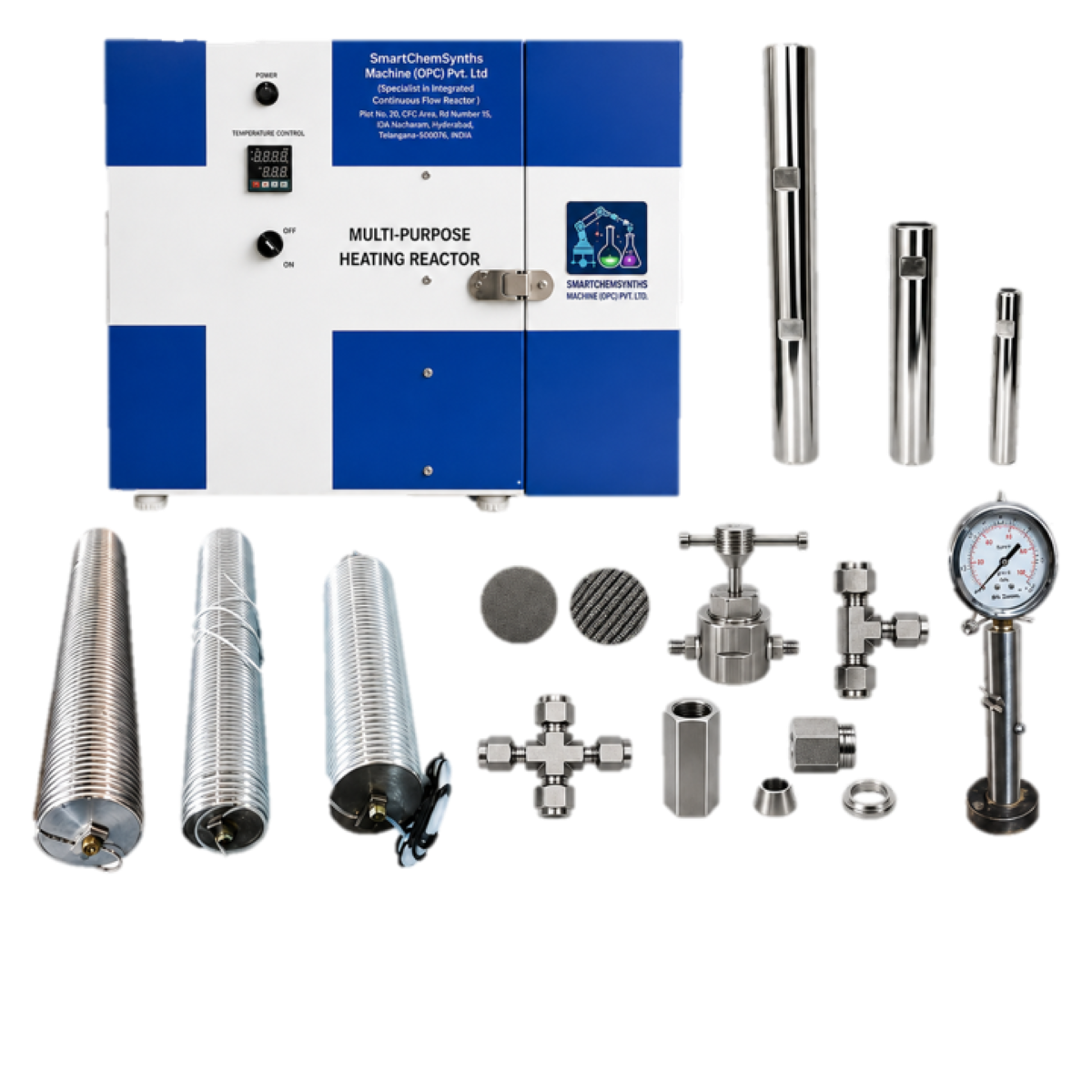

Single Channel Reactor

SCS-MR

Multipurpose High Temperature & Pressure Reactor (Single Channel)

Rs. 6,50,000/-

System Highlights

Furnace: 100 bar / 700°C, ceramic sheath 25×250 mm
Inner size: 50 mm dia. × 350 mm Ht
Includes SS-316 cartridges (1,2,7,50,100 mL)
Aluminium blocks (1,2&7,50,100 mL)
SS, PFA, PTFE tubular reactors (10 mL each)
Accessories: filter, BPR, NRV, gauge, junctions, nuts

✔ Customizable & AI integration ready

Image unavailable

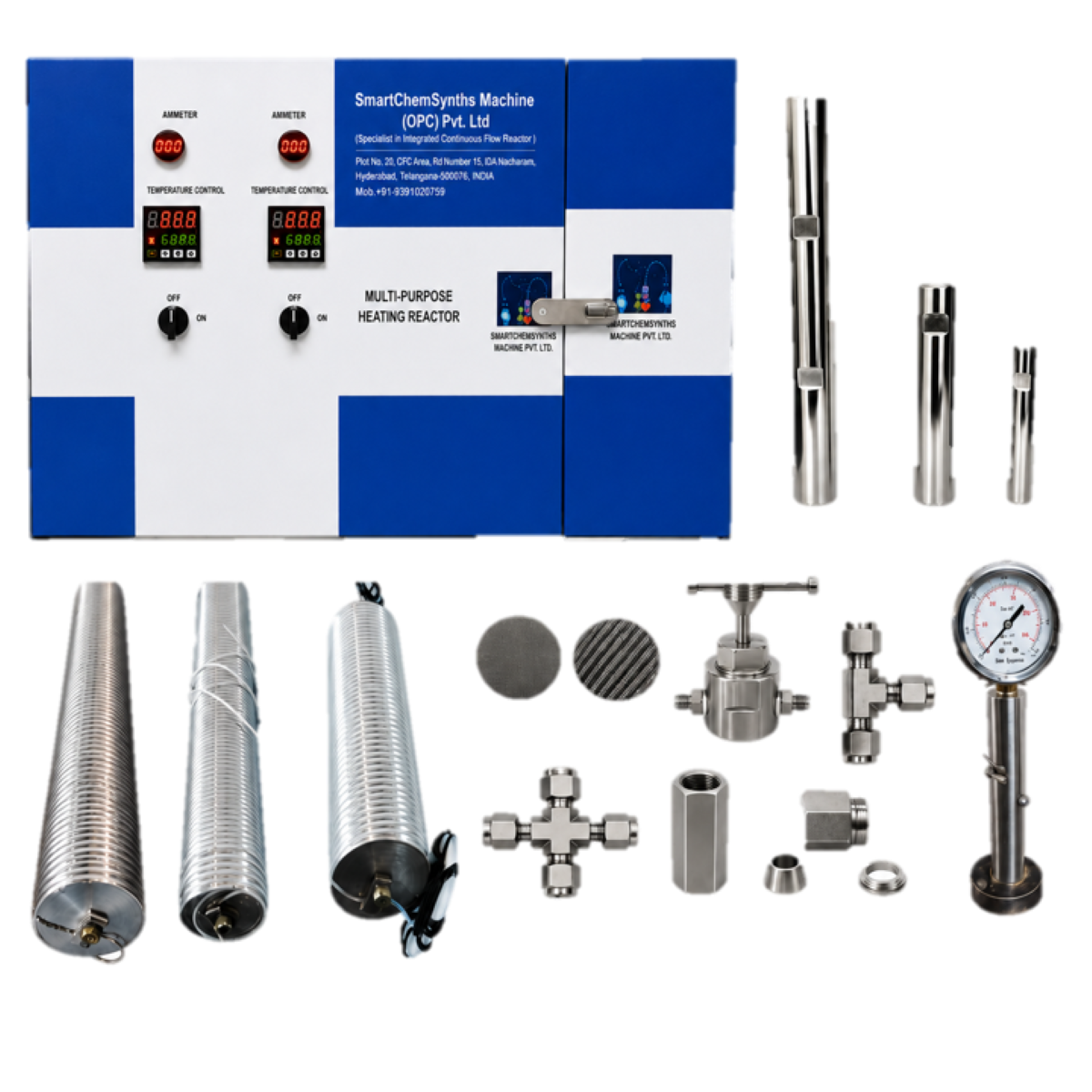

Double Channel Reactor

SCS-MR-D

Multipurpose Double Channel High Temperature & Pressure Reactor

On Request

System Highlights

Furnace: 100 bar / 600°C, ceramic sheath 25×250 mm
Inner size: 50 mm dia. × 500 mm Ht
2× each: SS cartridges (1,2,7,50,100 mL)
2× each: Aluminium blocks (1,2&7,50,100 mL)
2× each: SS, PFA, PTFE tubular reactors (10 mL)
Accessories: 2× filter, 2× BPR, 2× NRV, gauge, junctions

✔ Customizable & AI integration ready

Included Components & Accessories

Every system comes with a comprehensive set of reactors, blocks, cartridges and fittings.

SS-316

Catalyst Cartridges

1, 2, 7, 50, 100 mL

M.O.C: SS-316
ID 10 / 22 mm, coiled tube
100 bar, RT–500°C
Height: 116–295 mm

Aluminium

Catalyst Blocks

1, 2&7, 50, 100 mL

M.O.C: Aluminium
ID 20 / 26 mm, coiled tube
100 bar, RT–500°C
Height: 123–295 mm

Tubular

SS / PFA / PTFE Reactors

10 mL each

Aluminium stand
SS: 100–200 bar, RT–700°C
PFA: 100 bar, up to 500°C
PTFE: 30 bar, up to 150°C

Accessories

Filters, BPR, NRV, Gauge

Included

0.2 µm SS-316 filter (2 Qty)
SS-316 BPR 1–150 bar, 150°C
NRV, 100 bar gauge
T/X/Union junctions, nuts & ferrules

Need a Custom High‑Temp Reactor?

We can tailor the volume, materials, number of channels, and integrate AI control for your specific process.
