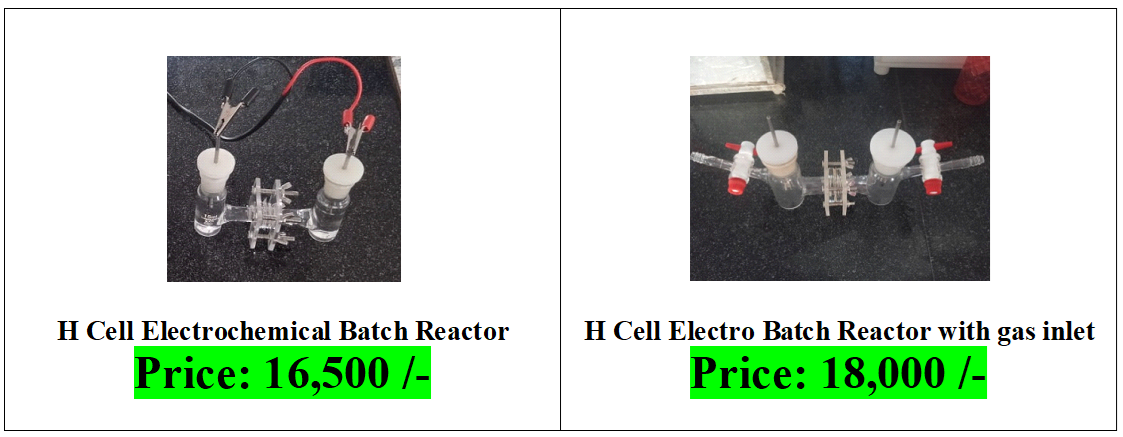

H-Cell/Divided Electro Batch Reactor (SCS-EBR)

H-Cell/Divided Electro Batch Reactor (SCS-EBR)

SKU SCS-EBRS-1-4 Category

An “Electro Batch Reactor” refers to a type of reactor system that combines electrochemical processes with batch-wise operation. This specialized reactor setup allows for controlled electrochemical reactions to take place in a batch mode, where reactants are loaded into the reactor vessel, the reaction occurs under specific conditions, and then the product is harvested after completion.

₹38,500.00

Product Enquiry
OrderThumbnailNameShort DescriptionAdd To Cart
1SCS-REHSCS-REHReusable electrode holder Holder OD = 3.2 mm

Add to cart

OrderThumbnailNameShort DescriptionAdd To Cart

The electrochemical batch reactor setup typically contains electrodes immersed in an electrolyte solution. The electrodes may be inert or reactive, depending on the desired reaction. Common electrode materials include metals like platinum, graphite, or reactive materials like titanium for specific applications.

  1. Electrochemical Batch Glass Cell (10 ml) with PE cap
  2. Reusable electrode holder (2 Qty.)
  3. Electrodes (55 mm x 8 mm x 1 mm):
  • Platinum
  • Hard Graphite
  • Soft Graphite
  • Magnesium
  • Titanium
  • Copper
  • Nickle
  • Aluminium
  • SS316
  • Nickle Foam
  • Iron
  • Zinc
  • Lead
  • Brass
  1. Programmable DC power supply

Specification

  • OWON Technology
  • 150W maximum output power
  • Volt 0-30V and 0-5A
  • High resolution： 1mV / 1mA
  • Low ripple/noise
  • Over voltage/over current protection
  • Multi-directional cooling system with smart fan
  • TFT LCD display
  • Support RS232 digital communication
  • Support SCPI and Labview
  1. Other Accessories, Alligator clip etc

Electrochemical Reactors offer several advantages including selective ion transport, enhanced mass transfer, controlled process conditions, continuous operation, and integration with chemical reactions for various industrial applications. The technology continues to be developed and optimized for increased efficiency and wider adoption across different sectors.
