Electrochemical Batch H-cell Without Gas Recator Setup

Electrochemical Batch H-cell Without Gas Recator Setup

SKU SCS-EBRS-1-1 Category

An electrochemical batch reactor is a type of reactor used in electrochemical processes where chemical reactions are driven by electrical energy.

₹46,000.00

Product Enquiry
OrderThumbnailNameShort DescriptionAdd To Cart
1SCS-REHSCS-REHReusable electrode holder Holder OD = 3.2 mm

Add to cart

OrderThumbnailNameShort DescriptionAdd To Cart

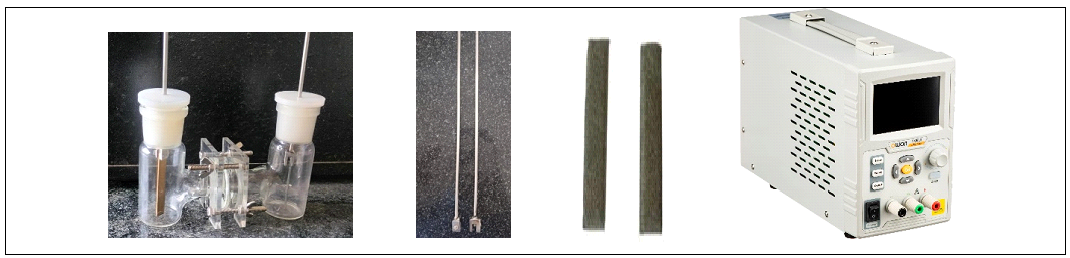

The electrochemical batch reactor setup typically contains electrodes immersed in an electrolyte solution. The electrodes may be inert or reactive, depending on the desired reaction. Common electrode materials include metals like platinum, graphite, or reactive materials like titanium for specific applications.

  1. Electrochemical Batch Glass Cell (50 ml) with PE cap
  2. Membrane (Nafion117 as Cation Exchange Membrane and Selemion as Anion Exchange Membrane) (either)
  3. Reusable electrode holder (2 Qty.)
  4. Electrodes (55 mm x 8 mm x 1 mm):
  • Platinum
  • Hard Graphite
  • Soft Graphite
  • Magnesium
  • Titanium
  • Copper
  • Nickle
  • Aluminium
  • SS316
  • Nickle Foam
  • Iron
  • Zinc
  • Lead
  • Brass
  1. Programmable DC power supply

Specification

  • OWON Technology
  • 150W maximum output power
  • Volt 0-30V and 0-5A
  • High resolution： 1mV / 1mA
  • Low ripple/noise
  • Over voltage/over current protection
  • Multi-directional cooling system with smart fan
  • TFT LCD display
  • Support RS232 digital communication
  • Support SCPI and Labview

Other Accessories, Alligator clip etc

Electrochemical Reactors offer several advantages including selective ion transport, enhanced mass transfer, controlled process conditions, continuous operation, and integration with chemical reactions for various industrial applications. The technology continues to be developed and optimized for increased efficiency and wider adoption across different sectors.
